K-NET/COBRANET

DIGITAL SNAKE CABLE



Description






Technical data



Digital Snake Cable Receiver

DSC40R

DSC24R

DSC8R

Analog Input

8CH(XLR jack)

8CH(XLR jack)

/

Analog Output

32CH(XLR jack)

16CH(XLR jack)

8CH(XLR jack)

Adjustable Analog input

+/-30dBV

+/-30dBV

/

Resolution

16bit,20bit,24bit

16bit,20bit,24bit

16bit,20bit,24bit

Sample Rate

48KHz

48KHz

48KHz

Dynamic Range

110dBV

110dBV

110dBV

THD + Noise

<0.008%@1KHz,0dB Gain

<0.008%@1KHz,0dB Gain

<0.008%@1KHz,0dB Gain

Frequency Response

20Hz~20KHz @ +/-0.5dBV

20Hz~20KHz @ +/-0.5dBV

20Hz~20KHz @ +/-0.5dBV

Noise Floor

<-100dBV

<-100dBV

<-100dBV

Cross Talk

<-100dBV

<-100dBV

<-100dBV

Indicate

Signal input LED,Phantom Power LED,Clipping LED,Power Switch LED

/
Phantom power
 DC 48V Switch on/off
 DC 48V Switch on/off
 /
Ethernet
 CAT5E Cable Max 100M,100 Base-T  RJ-45 Jack 2pork(Link&Cobranet)

Power

AC100V~240V 50Hz~60Hz

AC100V~240V 50Hz~60Hz

AC100V~240V 50Hz~60Hz

Dimension (WxHxD)

480mmx220mmx330mm

480mmx135mmx330mm

480mmx44mmx330mm




Technical data


Digital Snake Cable Receiver/Transmitter

DSC4RT

Analog Input

4CH(XLR jack)

Analog Output

4CH(XLR jack)

Adjustable Analog input

+/-20dBV

Resolution
 16bit,20bit,24bit

Sample Rate

48KHz

Dynamic Range

110dBV

THD + Noise

<0.008%@1KHz,0dB Gain

Frequency Response

20~20KHz @ +/-0.5dB

Noise Floor

<-100dBV

Cross Talk

<-100dBV

Ethernet

Cat5 Cable Max 100M,100Base-T  RJ-45 jack

Power

DC14V

Dimension (WxHxD)

480mmx44mmx200mm






Technical data

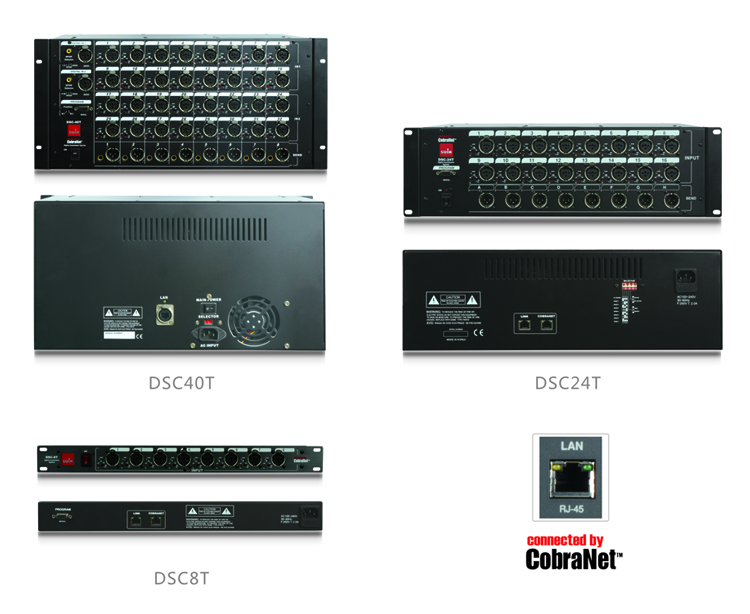

Digital Snake Cable Transmitter

DSC40T

DSC24T

DSC8T

Analog Input

32CH(XLR jack)

16CH(XLR jack)

8CH(XLR jack)

Analog Output

8CH(XLR jack)

8CH(XLR jack)

/

Adjustable Analog input

+/-30dBV

+/-30dBV

/

Resolution

16bit,20bit,24bit

16bit,20bit,24bit

16bit,20bit,24bit

Sample Rate

48KHz

48KHz

48KHz

Dynamic Range

110dBV

110dBV

110dBV

THD + Noise

<0.008%@1KHz,0dB Gain

<0.008%@1KHz,0dB Gain

<0.008%@1KHz,0dB Gain

Frequency Response

20Hz~20KHz @ +/-0.5dBV

20Hz~20KHz @ +/-0.5dBV

20Hz~20KHz @ +/-0.5dBV

Noise Floor

<-100dBV

<-100dBV

<-100dBV

Cross Talk

<-100dBV

<-100dBV

<-100dBV

Indicate

Signal input LED,Phantom Power LED,Clipping LED,Power Switch LED

Phantom power
 DC 48V Switch on/off
 DC 48V Switch on/off
 /
Ethernet
 CAT5E Cable Max 100M,100 Base-T  RJ-45 Jack 2pork(Link&Cobranet)

Power

AC100V~240V 50Hz~60Hz

AC100V~240V 50Hz~60Hz

AC100V~240V 50Hz~60Hz

Dimension (WxHxD)

480mmx220mmx330mm

480mmx135mmx330mm

480mmx44mmx330mm
